Production of segment fittingsh
Tako AR specializes in the production of segmented fittings for the construction of water and sewage networks.
Our production includes:
– Segmented fittings:
Segmented bends in the range from d90 mm to d1200 mm,
Segmented 90 ° tees in the range from d90 mm to d1200 mm,
Segmented angular 45 ° and 60 ° tees in the range from d90 mm to d630 mm,
Reducing segment tees and flanged tees in the above-mentioned diameters,
Segmented 90 ° crosses in the range from d90 mm to d500 mm,

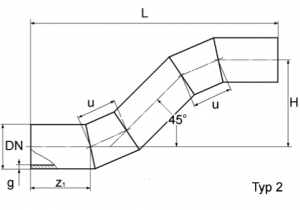

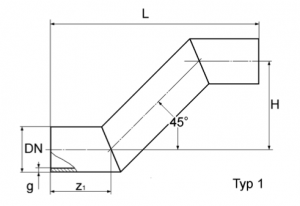

Segmented offsets for sewerage in the range from d90 mm to d800 mm.
– Prefabricated products according to individual arrangements:
Butt-welded pipe prefabricates in the range of d25 mm ÷ d1000 mm,
Pipe prefabricated muffly welded (polyfusion) in the range of d25 mm ÷ d110 mm,
Extending short fittings (sleeves, reductions, etc.) in the range d90 mm ÷ d1000 mm.
– PE collectors for heat pumps:
Moreover, an important branch of our production is the production of manifolds (collectors) for heat pumps
(being an alternative to copper and steel collectors) and geothermal probes.
manifold pipe in the range d40 mm ÷ d110 mm, number of manifold sections according to the customer’s requirements (e.g. 3-, 4-, 6-, 8-, or 10 sections),
smooth manifold connections (for electrofusion welding or connection with twisted fittings) or threaded geothermal probes d25 ÷ d63 mm.
We also make flanged pipeline elements used in the dredging of rivers and water reservoirs and to
hydrotransport and dredging of spoil. We make prefabricated elements on individual customer orders
in accordance with the executive documentation or individual arrangements. Segmented fittings and prefabricated elements
we are made of PE-HD, PE-RC and PP pipes with diameters d90 ÷ d1200 mm in SDR17, SDR11, SDR26, SDR33, SDR7,4.
Our production includes:
– Segmented fittings:
Segmented bends in the range from d90 mm to d1200 mm,
Segmented 90 ° tees in the range from d90 mm to d1200 mm,
Segmented angular 45 ° and 60 ° tees in the range from d90 mm to d630 mm,
Reducing segment tees and flanged tees in the above-mentioned diameters,
Segmented 90 ° crosses in the range from d90 mm to d500 mm,
Segmented offsets for sewerage in the range from d90 mm to d800 mm.
– Prefabricated products according to individual arrangements:
Butt-welded pipe prefabricates in the range of d25 mm ÷ d1000 mm,
Pipe prefabricated muffly welded (polyfusion) in the range of d25 mm ÷ d110 mm,
Extending short fittings (sleeves, reductions, etc.) in the range d90 mm ÷ d1000 mm.
– PE collectors for heat pumps:
Moreover, an important branch of our production is the production of manifolds (collectors) for heat pumps
(being an alternative to copper and steel collectors) and geothermal probes.
manifold pipe in the range d40 mm ÷ d110 mm, number of manifold sections according to the customer’s requirements (e.g. 3-, 4-, 6-, 8-, or 10 sections),
smooth manifold connections (for electrofusion welding or connection with twisted fittings) or threaded geothermal probes d25 ÷ d63 mm.
We also make flanged pipeline elements used in the dredging of rivers and water reservoirs and to
hydrotransport and dredging of spoil. We make prefabricated elements on individual customer orders
in accordance with the executive documentation or individual arrangements. Segmented fittings and prefabricated elements
we are made of PE-HD, PE-RC and PP pipes with diameters d90 ÷ d1200 mm in SDR17, SDR11, SDR26, SDR33, SDR7,4.
We produce segmented bends of PE-HD, PE-RC, PP or PVDF pipes in the diameter range of d 25 ÷ d 1200 mm and in SDR 17, SDR 11, SDR 26, SDR 33, SDR 7.4 (as standard in the range of d 90 ÷ d 1000 mm in SDR 17, SDR 11 and SDR 26). Our segment fittings are made in accordance with PN-EN 12201-3: 2011 “Plastic piping systems for water supply, pressure drainage and sewage – Polyethylene (PE) – Part 3: Fittings”.
At the request of our clients, we produce bends with any angle of opening and with individually agreed lengths of the arms of the arches.
Segmented bends – dimensions
[mm] | g [mm] | z [mm] (±10mm) | u[mm] (±10mm) | Indicative weight [Kg] | ||||||
do 30º | 31º ÷ 60º | 61º ÷ 90º | ||||||||
SDR 17 | SDR 11 | SDR 17 | SDR 11 | SDR 17 | SDR 11 | SDR 17 | SDR 11 | |||
90 | 5,4 | 8,2 | 165,00 | 110,00 | 0,50 | 0,70 | 0,65 | 0,95 | 0,80 | 1,20 |
110 | 6,6 | 10,0 | 170,00 | 110,00 | 0,75 | 1,10 | 1,00 | 1,45 | 1,20 | 1,80 |
125 | 7,4 | 11,4 | 180,00 | 130,00 | 1,00 | 1,50 | 1,35 | 2,00 | 1,70 | 2,55 |
140 | 8,3 | 12,7 | 180,00 | 140,00 | 1,25 | 1,85 | 1,75 | 2,55 | 2,25 | 3,30 |
160 | 9,5 | 14,6 | 190,00 | 150,00 | 1,75 | 2,55 | 2,40 | 3,55 | 3,10 | 4,60 |
180 | 10,7 | 16,4 | 190,00 | 170,00 | 2,20 | 3,25 | 3,20 | 4,65 | 4,15 | 6,10 |
200 | 11,9 | 18,2 | 200,00 | 190,00 | 2,85 | 4,20 | 4,20 | 6,20 | 5,55 | 8,20 |
225 | 13,4 | 20,5 | 230,00 | 220,00 | 4,15 | 6,10 | 6,15 | 9,05 | 8,10 | 12,00 |
250 | 14,8 | 22,7 | 300,00 | 250,00 | 6,60 | 9,80 | 9,35 | 13,85 | 12,10 | 18,00 |
280 | 16,6 | 25,4 | 350,00 | 250,00 | 9,75 | 14,30 | 13,20 | 19,45 | 16,70 | 24,55 |
315 | 18,7 | 28,6 | 350,00 | 280,00 | 12,30 | 18,05 | 17,25 | 25,30 | 22,20 | 32,50 |
355 | 21,1 | 32,2 | 400,00 | 280,00 | 17,85 | 26,25 | 24,10 | 35,40 | 30,35 | 44,60 |
400 | 23,7 | 36,3 | 400,00 | 310,00 | 22,55 | 33,30 | 31,30 | 46,20 | 40,10 | 59,10 |
450 | 26,7 | 40,9 | 450,00 | 350,00 | 32,15 | 47,45 | 44,65 | 65,90 | 57,10 | 84,30 |
500 | 29,7 | 45,4 | 500,00 | 400,00 | 44,20 | 65,10 | 61,90 | 91,15 | 79,60 | 117,20 |
560 | 33,2 | 50,8 | 500,00 | 450,00 | 55,30 | 81,50 | 80,20 | 118,20 | 105,10 | 154,85 |
630 | 37,4 | 57,2 | 550,00 | 470,00 | 77,00 | 113,80 | 109,90 | 162,40 | 142,80 | 211,05 |
710 | 42,1 | 64,5 | 600,00 | 700,00 | 106,70 | 157,20 | 168,91 | 248,90 | 231,15 | 340,60 |
800 | 47,4 | 72,7 | 650,00 | 750,00 | 146,50 | 217,10 | 231,04 | 342,35 | 315,60 | 467,60 |
900 | 53,3 | 700,00 | 750,00 | 413,25 | ||||||
1000 | 59,3 | 750,00 | 750,00 | 529,35 | ||||||
We make prefabricated elements of PE-HD, PE-RC and PP with diameters d 25 ÷ d 1200 mm (SDR 17, SDR 11,
SDR 26, SDR 33, SDR 7.4) according to individual customer orders on the basis of the delivered one
documentation or according to individual arrangements.
This production includes, among others:
butt-welded pipe prefabricates in the range of d 25 ÷ d 1000 mm
pipe prefabricates with a socket weld (polyfusion) in the range d 25 ÷ d 110 mm
extension of short fittings (reductions, sleeves, etc.) in the range of d 25 ÷ d 1000 mm
offsets, bypasses, branching pipelines, flanged reducers, etc.
Flanged pipes for hydrotransport, for use in dredging rivers and reservoirs
water and during silting works.
We manufacture various types of segment fittings. Our offer includes segmented angular 45º and 60º tees equal through and reducing in the range d 90 ÷ d 630 mm, as well as crosses in the range d 90 ÷ d 500 mm and Y-shaped tees made of PE pipes in SDR 17, SDR 11 and SDR 26 All products are manufactured on the client’s individual request, in accordance with his guidelines.

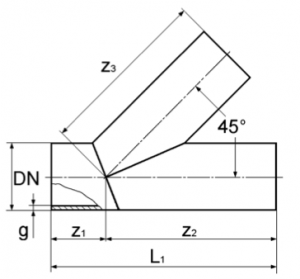

Segmented angular 45º and 60º tees
DN | g | Dimensions | Mass | |||||
SDR 17 | SDR 11 | z1 | L1 | z2 | z3 | SDR 17 | SDR 11 | |
[mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [ ̴ kg] | [ ̴ kg] |
90 | 5,4 | 8,2 | 165 | 685 | 520 | 520 | 1,55 | 2,35 |
110 | 6,6 | 10,0 | 170 | 720 | 550 | 550 | 2,50 | 3,80 |
125 | 7,4 | 11,4 | 180 | 750 | 570 | 570 | 3,35 | 5,05 |
140 | 8,3 | 12,7 | 180 | 760 | 580 | 580 | 4,30 | 6,50 |
160 | 9,5 | 14,6 | 190 | 770 | 580 | 580 | 5,70 | 8,60 |
180 | 10,7 | 16,4 | 190 | 790 | 600 | 600 | 7,50 | 11,20 |
200 | 11,9 | 18,2 | 200 | 870 | 670 | 670 | 10,20 | 15,30 |
225 | 13,4 | 20,5 | 230 | 930 | 700 | 700 | 13,70 | 20,50 |
250 | 14,8 | 22,7 | 300 | 900 | 700 | 700 | 16,60 | 24,90 |
280 | 16,6 | 25,4 | 350 | 990 | 640 | 640 | 21,30 | 31,80 |
315 | 18,7 | 28,6 | 415 | 1145 | 730 | 730 | 31,00 | 46,00 |
355 | 21,1 | 32,2 | 420 | 1190 | 770 | 770 | 41,40 | 61,50 |
400 | 23,7 | 36,3 | 430 | 1260 | 830 | 830 | 55,80 | 83,30 |
450 | 26,7 | 40,9 | 440 | 1330 | 890 | 890 | 75,00 | 112,00 |
500 | 29,7 | 45,4 | 450 | 1400 | 950 | 950 | 98,00 | 146,00 |
560 | 33,2 | 50,8 | 470 | 1490 | 1020 | 1020 | 131,00 | 196,00 |
630 | 37,4 | 57,2 | 480 | 1590 | 1110 | 1110 | 178,00 | 266,00 |
710 | 42,1 | 500 | 1705 | 1205 | 1205 | 244,00 | ||
800* | 47,4 | |||||||
* Can be made after a special agreement

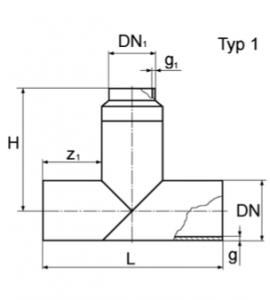

Segmental angular reducing tees
DN | DN1 | Dimensions | Mass | |||
z1 | L | H | SDR 17 | SDR 11 | ||
[mm] | [mm] | [mm] | [mm] | [mm] | [ ̴ kg] | [ ̴ kg] |
90 | 50/63/75 | 165 | 420 | The dimension depends on the applied reductions (on their dimensions and quantity) | The mass of the fitting depends on the applied reductions (on their dimensions and quantity) | The mass of the fitting depends on the applied reductions (on their dimensions and quantity) |
110 | 50/63/75/90 | 170 | 450 | |||
125 | 63/75/90/110 | 180 | 485 | |||
140 | 63/75/90/110/125 | 180 | 500 | |||
160 | 63/75/90/110/125/140 | 190 | 540 | |||
180 | 63/75/90/110/125/140/160 | 190 | 560 | |||
200 | 63/75/90/110/125/140 160/180 | 200 | 600 | |||
225 | 63/75/90/110/125/140 160/180/200 | 230 | 685 | |||
250 | 63/75/90/110/125/140 160/180/200/225 | 300 | 850 | |||
280 | 63/75/90/110/125/140 160/180/200/225/250 | 350 | 980 | |||
315 | 63/75/90/110/125/140 | 350 | 1015 | |||
355 | 63/75/90/110/125/140/160 180/200/225/250/280/315 | 400 | 1155 | |||
400 | 63/75/90/110/125/140 160/180/200/225/250 280/315/355 | 400 | 1200 | |||
450 | 90/110/125/140/160 180/200/225/250/280 315/355/400 | 450 | 1350 | |||
500 | 90/110/125/140/160 180/200/225/250/280 315/355/400/450 | 500 | 1500 | |||
560 | 90/110/125/140/160 180/200/225/250/280 315/355/400/450/500 | 500 | 1560 | |||
630 | 90/110/125/140/160/180 200/225/250/280/315 355/400/450/500/560 | 550 | 1730 | The dimension depends on the applied reductions (on their dimensions and quantity) | The mass of the fitting depends on the applied reductions (on their dimensions and quantity) | The mass of the fitting depends on the applied reductions (on their dimensions and quantity) |
710 | 90/110/125/140/160/180 200/225/250/280/315/355 400/450/500/560/630 | 600 | 1910 | |||
800 | 160/180/200/225/250/280 315/355/400/450/500 560/630/710 | 650 | 2100 | |||
900 | 250/280/315/355/400 450/500/560/630/710 | 400 | 1700 | |||
1000 | 250/280/315/355/400 450/500/560/630/710 800/900 | 520 | 2040 | |||

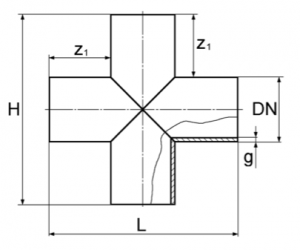

Segmented crosses
DN | g | Dimensions | Mass | ||||
SDR 17 | SDR 11 | z1 | L¹ | H¹ | SDR 17 | SDR 11 | |
[mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [ ̴ kg] | [ ̴ kg] |
90 | 5,4 | 8,2 | 165 | 420 | 420 | 1,13 | 1,70 |
110 | 6,6 | 10,0 | 170 | 450 | 450 | 1,80 | 2,70 |
125 | 7,4 | 11,4 | 180 | 485 | 485 | 2,53 | 3,75 |
140 | 8,3 | 12,7 | 180 | 500 | 500 | 3,30 | 4,90 |
160 | 9,5 | 14,6 | 190 | 540 | 540 | 4,70 | 7,00 |
180 | 10,7 | 16,4 | 190 | 560 | 560 | 6,05 | 9,05 |
200 | 11,9 | 18,2 | 200 | 600 | 600 | 8,00 | 11,95 |
225 | 13,4 | 20,5 | 230 | 685 | 685 | 11,60 | 17,25 |
250 | 14,8 | 22,7 | 300 | 850 | 850 | 17,75 | 26,45 |
280 | 16,6 | 25,4 | 350 | 980 | 980 | 25,65 | 38,30 |
315 | 18,7 | 28,6 | 350 | 1015 | 1015 | 33,60 | 50,15 |
355 | 21,1 | 32,2 | 400 | 1155 | 1155 | 48,55 | 72,50 |
400 | 23,7 | 36,3 | 460 | 1320 | 1320 | 70,50 | 105,25 |
450 | 26,7 | 40,9 | 520 | 1490 | 1490 | 101,40 | 151,35 |
500 | 29,7 | 45,4 | 600 | 1700 | 1700 | 141,85 | 211,75 |
560 | 33,2 | 50,8 | 700 | 1960 | 1960 | 205,20 | 306,30 |
630 | 37,4 | 57,2 | 750 | 2130 | 2130 | 282,20 | 421,20 |
710 | 42,1 | 900 | 2510 | 2510 | 422,35 | ||
800* | 47,4 | ||||||
¹ In the standard version, L = H; at the request of the customer, these dimensions may be different.
* Can be made after a special agreement

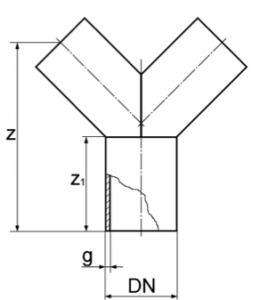

Segmented tees Y
DN | g | Dimensions | Mass | |||
SDR 17 | SDR 11 | z1 | z | SDR 17 | SDR 11 | |
[mm] | [mm] | [mm] | [mm] | [mm] | [ ̴ kg] | [ ̴ kg] |
90 | 5,4 | 8,2 | 190 | 325 | 0,95 | 1,45 |
110 | 6,6 | 10,0 | 195 | 337 | 1,55 | 2,30 |
125 | 7,4 | 11,4 | 205 | 357 | 2,15 | 3,15 |
140 | 8,3 | 12,7 | 205 | 360 | 2,80 | 4,15 |
160 | 9,5 | 14,6 | 218 | 383 | 3,95 | 5,90 |
180 | 10,7 | 16,4 | 218 | 390 | 5,20 | 7,70 |
200 | 11,9 | 18,2 | 230 | 413 | 6,95 | 10,30 |
225 | 13,4 | 20,5 | 265 | 475 | 9,90 | 14,75 |
250 | 14,8 | 22,7 | 345 | 610 | 15,20 | 22,70 |
280 | 16,6 | 25,4 | 400 | 705 | 22,10 | 33,00 |
315 | 18,7 | 28,6 | 400 | 714 | 29,00 | 43,00 |
355 | 21,1 | 32,2 | 460 | 815 | 42,00 | 62,00 |
400 | 23,7 | 36,3 | 460 | 827 | 55,00 | 82,50 |
450 | 26,7 | 40,9 | 515 | 925 | 78,00 | 117,00 |
500 | 29,7 | 45,4 | 575 | 1034 | 108,00 | 160,00 |
560 | 33,2 | 50,8 | 575 | 1045 | 141,00 | 210,00 |
630 | 37,4 | 57,2 | 630 | 1150 | 198,00 | 295,00 |
710* | 42,1 | 64,5 | * | * | * | * |
800* | 47,4 | 72,7 | * | * | * | * |
* Can be made after a special agreement
Our assortment includes segment tees made of PE-HD, PE-RC and PP pipes with diameters d 90 ÷ d 1200 mm and in SDR 17, SDR 11, SDR 26, SDR 33, SDR 7.4 (as standard in the scope of d 90 ÷ d 800 mm in SDR 17, SDR 11 and SDR 26). We make fittings in accordance with the PN-EN 12201-3: 2011 standard “Plastic piping systems for water transmission and pressure drainage and sewage – Polyethylene (PE) – Part 3: Fittings”.
For reducing tees and flanged tees, the dimensions of the reduced arms depend on the dimensions of the applied reductions and the dimensions of the flanged sleeves.
At the request of our clients, we make tees with individually agreed arm lengths.

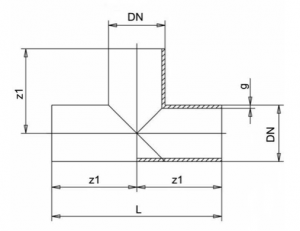

Segmental equal tees – dimensions
DN [mm] | g [mm] | z1 [mm] (± 10 mm) | L [mm] (± 10 mm) | Indicative weight [Kg] | ||
SDR 17 | SDR 11 | SDR 17 | SDR 11 | |||
90 | 5,4 | 8,2 | 210,00 | 420,00 | 0,95 | 1,35 |
110 | 6,6 | 10,0 | 225,00 | 450,00 | 1,50 | 2,15 |
125 | 7,4 | 11,4 | 240,00 | 480,00 | 2,00 | 3,00 |
140 | 8,3 | 12,7 | 250,00 | 500,00 | 2,60 | 3,85 |
160 | 9,5 | 14,6 | 270,00 | 540,00 | 3,70 | 5,45 |
180 | 10,7 | 16,4 | 280,00 | 560,00 | 4,85 | 7,15 |
200 | 11,9 | 18,2 | 300,00 | 600,00 | 6,40 | 9,45 |
225 | 13,4 | 20,5 | 340,00 | 680,00 | 9,25 | 13,65 |
250 | 14,8 | 22,7 | 425,00 | 850,00 | 14,05 | 20,80 |
280 | 16,6 | 25,4 | 490,00 | 980,00 | 20,45 | 30,10 |
315 | 18,7 | 28,6 | 505,00 | 1010,00 | 26,80 | 39,30 |
355 | 21,1 | 32,2 | 575,00 | 1150,00 | 38,65 | 56,85 |
400 | 23,7 | 36,3 | 600,00 | 1200,00 | 50,75 | 74,90 |
450 | 26,7 | 40,9 | 675,00 | 1350,00 | 72,30 | 106,70 |
500 | 29,7 | 45,4 | 750,00 | 1500,00 | 99,45 | 146,50 |
560 | 33,2 | 50,8 | 840,00 | 1680,00 | 129,40 | 190,70 |
630 | 37,4 | 57,2 | 865,00 | 1730,00 | 181,65 | 268,45 |
710 | 42,1 | 64,5 | 955,00 | 1910,00 | 254,70 | 375,30 |
800 | 47,4 | 72,7 | 1050,00 | 2100,00 | 355,00 | 526,05 |
We manufacture segmented fittings for vacuum sewage systems – segmented 45º faults with a height of H = 300 mm (or with other agreed angle and height of the fault) and 45º segmental tees with a 60º bend.
These fittings are made of PE-HD and PE-RC pipes in the diameter range d 90 ÷ d 315 mm and in SDR 17, SDR 11, SDR 26.
Typ 1
DN | g | Dimensions | Mass | ||||
SDR 17 | SDR 11 | z1 | H | L | SDR 17 | SDR 11 | |
[mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [ ̴ kg] | [ ̴ kg] |
90 | 5,4 | 8,2 | 165 | As agreed with the Customer | Depending on the agreed height H and the agreed angle (standard angle 45 °) | The mass of the fitting depends on the dimensions agreed with the Ordering Party | The mass of the fitting depends on the dimensions agreed with the Ordering Party |
110 | 6,6 | 10,0 | 170 | ||||
125 | 7,4 | 11,4 | 180 | ||||
140 | 8,3 | 12,7 | 180 | ||||
160 | 9,5 | 14,6 | 190 | ||||
180 | 10,7 | 16,4 | 190 | ||||
200 | 11,9 | 18,2 | 200 | ||||
225 | 13,4 | 20,5 | 230 | ||||
250 | 14,8 | 22,7 | 300 | ||||
280 | 16,6 | 25,4 | 350 | ||||
315 | 18,7 | 28,6 | 350 | ||||
355 | 21,1 | 32,2 | 400 | ||||
400 | 23,7 | 36,3 | 400 | ||||
450 | 26,7 | 40,9 | 450 | ||||
500 | 29,7 | 45,4 | 500 | ||||
560 | 33,2 | 50,8 | 500 | ||||
630 | 37,4 | 57,2 | 550 | ||||
710 | 42,1 | 64,5 | 600 | ||||
800 | 47,4 | 72,7 | 650 | ||||
900 | 53,5 | 400 | |||||
1000 | 59,3 | 520 | |||||
Typ 2
DN | g | Dimensions | Mass | ||||
SDR 17 | SDR 11 | z1 | H | L | SDR 17 | SDR 11 | |
[mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [ ̴ kg] | [ ̴ kg] |
90 | 5,4 | 8,2 | 165 | As agreed with the Customer | Depending on the agreed height H and the agreed angle (standard angle 45 °) | The mass of the fitting depends on the dimensions agreed with the Ordering Party | The mass of the fitting depends on the dimensions agreed with the Ordering Party |
110 | 6,6 | 10,0 | 170 | ||||
125 | 7,4 | 11,4 | 180 | ||||
140 | 8,3 | 12,7 | 180 | ||||
160 | 9,5 | 14,6 | 190 | ||||
180 | 10,7 | 16,4 | 190 | ||||
200 | 11,9 | 18,2 | 200 | ||||
225 | 13,4 | 20,5 | 230 | ||||
250 | 14,8 | 22,7 | 300 | ||||
280 | 16,6 | 25,4 | 350 | ||||
315 | 18,7 | 28,6 | 350 | ||||
355 | 21,1 | 32,2 | 400 | ||||
400 | 23,7 | 36,3 | 400 | ||||
450 | 26,7 | 40,9 | 450 | ||||
500 | 29,7 | 45,4 | 500 | ||||
560 | 33,2 | 50,8 | 500 | ||||
630 | 37,4 | 57,2 | 550 | ||||
710 | 42,1 | 64,5 | 600 | ||||
800 | 47,4 | 72,7 | 650 | ||||
900 | 53,5 | 400 | |||||
1000 | 59,3 | 520 | |||||
